Has been released!
All the code, 3D files and instructions are on GitHub.
https://github.com/DCC-EX/EX-T3-WiFi
YouTube playlist – https://www.youtube.com/playlist?list=PLSPpmR-vqy4qfpt3dOrva0u5kK-BvHIwF
Categories
Tag: Arduino
Categories
T3-EX-Tethered

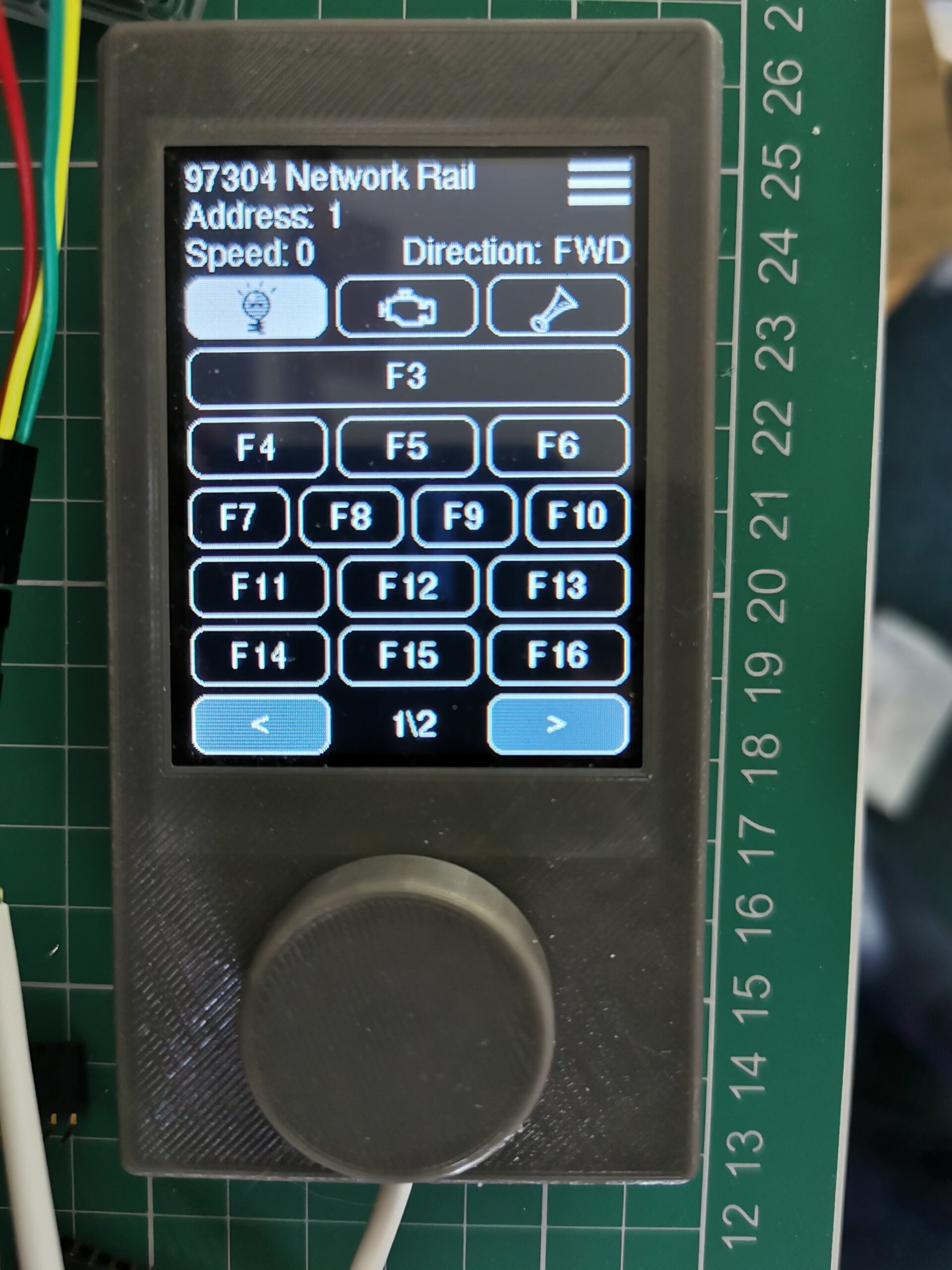

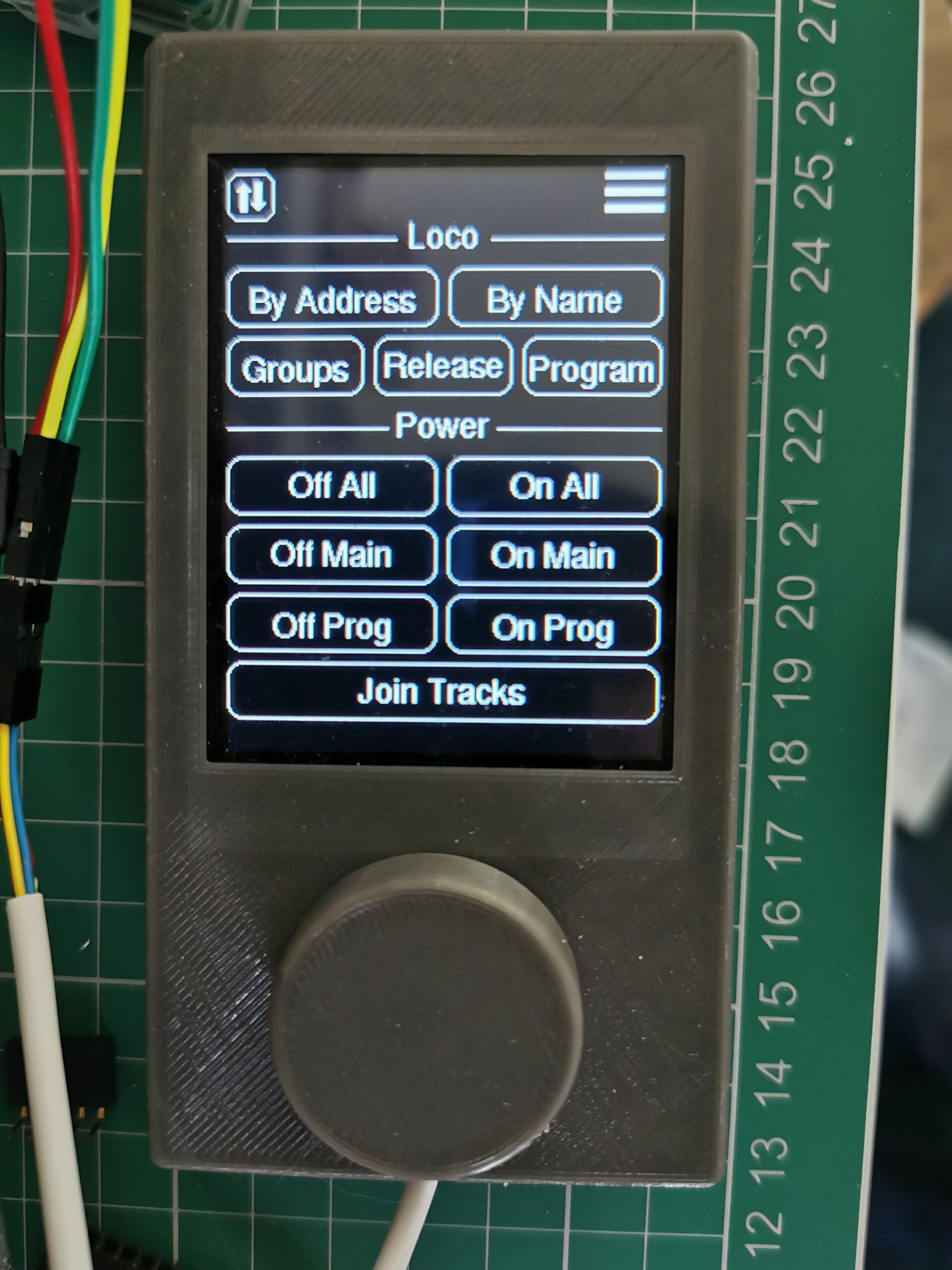

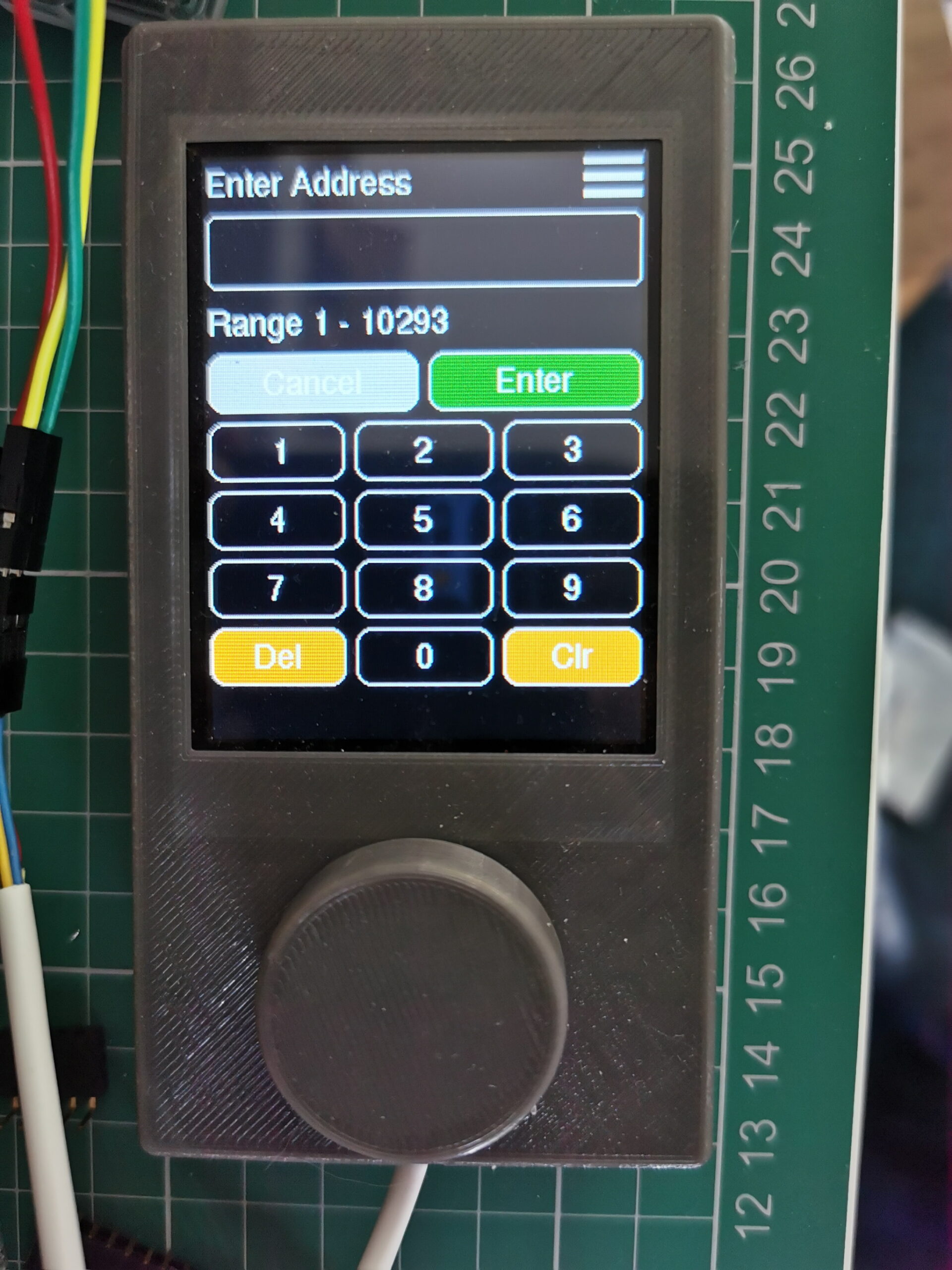

Tactile Touch Throttle (T3) for DCC++Ex using Arduino
Parts
- Arduino Mega
- Adafruit 2.8″ TFT Touch Shield – Capacitive
- Rotary Encoder Board KY-040
- Jumper wire
- 4 core cable
- 8GB microSD card (not required but needed for custom loco configs)
Code and instructions available on GitHub – T3-EX-Tethered
Categories
Model Railway Servo Controller
Control points, semaphore signals and other accessories using servos.
There’s 4 types that have different options
- Point – Has 4 speed options
- Semaphore Signal – Can simulate drop bounce and pull up hesitation
- Sweep – Has 4 speed options (Can be used for gates)
- On\Off – Can be used with N Channel mosfets
